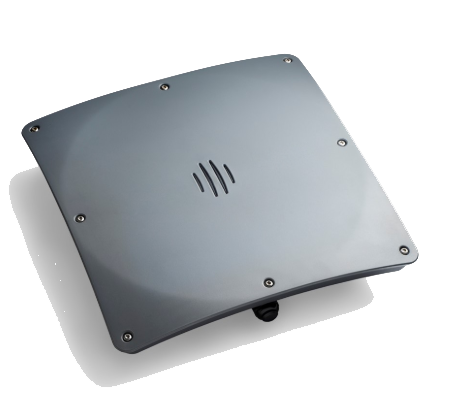

RFID Reader

The Parking Telecom UHF RFID Reader is especially designed and optimized for parking applications. It is an all-in-one reader with an integrated antenna and a unique combination of high quality components at a competitive price, making it the most innovative reader on the market.

Parking Telecom’s fully integrated solution allows for ticketless operation as well as multi-lane analysis and anti-passback functionality.

It is characterized with long read range, long product lifetime and low cost of use. Its weatherproof design, with IP66 rating, ensures that the reader is an excellent choice both for outdoor and indoor use.

Parking Telecom RFID

Features

Options

Easy to use and install
Attractive price-performance
Robust and weatherproof design, IP66
Read range of up to 8 m (26 ft)
Operates with passive UHF tags and ISO cards

Universal Mounting Kit (UMK)
The UMK includes brackets for both pole and wall (flat surface) mounting of the PT UHF RFID readers. The UMK is suitable for indoor and outdoor use.
Headlight Tags
Tag with adhesive, designed for permanent headlight mounting on cars with metalized windshield.

RFID Reader

The Parking Telecom UHF RFID Reader is especially designed and optimized for parking applications. It is an all-in-one reader with an integrated antenna and a unique combination of high quality components at a competitive price, making it the most innovative reader on the market.

Parking Telecom’s fully integrated solution allows for ticketless operation as well as multi-lane analysis and anti-passback functionality.

It is characterized with long read range, long product lifetime and low cost of use. Its weatherproof design, with IP66 rating, ensures that the reader is an excellent choice both for outdoor and indoor use.

Parking Telecom RFID

Features

Easy to use and install
Attractive price-performance
Robust and weatherproof design, IP66
Read range of up to 8 m (26 ft)
Operates with passive UHF tags and ISO cards

Options

Universal Mounting Kit (UMK)
The UMK includes brackets for both pole and wall (flat surface) mounting of the PT UHF RFID readers. The UMK is suitable for indoor and outdoor use.
Headlight Tags
Tag with adhesive, designed for permanent headlight mounting on cars with metalized windshield.

PARKING TELECOM ALPR CAMERA

TECHNICAL SPECIFICATION

Read Range
Input
Output
Relay
LED Indicator
Operating & Storage Temperature
Housing
Dimensions (W x H x L)
Weight
Protection
Power Supply Voltage
Power Consumption
Output Power
Certificates
Standard
EMC
Safety

Up to 8 m (26 ft) with passive UHF tags and ISO cards
3 isolated inputs
3 isolated outputs shared with Wiegand/Magstripe
1 relay output, 60 VDC, 2 A
Red-Green-Yellow
From -40°C to +60°C | -40°F to +140°F
Aluminum housing UL94 certified XENOY cover
300 mm x 300 mm x 60 mm| 11.8 in x 11.8 in x 2.4 in
2.3 kg | 5.1 lbs
Waterproof IP66
12–24 VDC supply
10 W (max 12 W)
EU: 2 W (e.r.p). US: 4 W (e.i.r.p)
CE Certificate according to R&TTE-Directive 1999/5/EC and FCC
RAIN (EPC Gen2 ISO 18000-63)
EN 301489-1, EN 301489-3
EN 60950-1, EN 60950-22

PARKING TELECOM PASSIVE WINDSHIELD TAG

An adhesive tag, designed for permanent mounting on car windshield. It is a battery free, UHF read only tag, suitable for long range vehicle access applications, which can be permanently and tamper evidently attached to a vehicle. The tag is mounted on the inside of the vehicle windshield using the adhesive, and has a barcode at the front to allow automated processing and easy issuing to users. The tags are delivered in continuous running number series.

Read Range
Operating Frequencies
Dimensions
Weight
Adhesive
Chip information
Operating & Storage Temperature
Material
Barcode
Color
Standard

EU: Up to 8 m (26 ft). US: Up to 9 m (29 ft)
EU: 865–868 MHz. US: 902–928 MHz
106.4 mm x 28.6 mm| 4.2 in x 1.1 in. Thickness 0.55 mm | 0.022 in
2.2 g | 0.078 oz
Low surface energy, pressure-sensitive adhesive
Impinj Monza 4D
From -25°C to +80°C | -13°F to +175°F
Flexible polypropylene
128C
White with print
RAIN (EPC Gen2 ISO 18000-63)

PARKING TELECOM PASSIVE ISO CARD

A flexible and versatile card, designed for vehicle and personal access control. The ISO Card is a battery free, UHF read only card, suitable for long range applications. The ISO Card is particularly suitable when a single card should be used for different vehicles, or when the card should also be used together with an access control system for people identification. The ISO Card can be read from both sides, and has a printable front and pre-printed identification at the back of the card to allow easy issuing to users. The cards are delivered in continuous running number series.

Read Range
Operating Frequencies
Dimensions
Weight
Chip information
Operating & Storage Temperature
Material
Color
Standard

EU: Up to 8 m (26 ft). US: Up to 9 m (29 ft)
EU: 865–868 MHz. US: 902–928 MHz
86 mm x 54 mm| 3.4 in x 2.1 in. Thickness 0.8 mm | 0.031 in
5.2 g | 0.18 oz
Monza 4QT
From -40°C to +70°C | -40°F to +158°F
Composite PETF/PVC
White with black print
RAIN (EPC Gen2 ISO 18000-63)

PARKING TELECOM ALPR CAMERA

TECHNICAL SPECIFICATION

Read Range: Up to 8 m (26 ft) with passive UHF tags and ISO cards
Input: 3 isolated inputs
Output: 3 isolated outputs shared with Wiegand/Magstripe
Relay: 1 relay output, 60 VDC, 2 A
LED Indicator: Red-Green-Yellow
Operating & Storage Temperature: From -40°C to +60°C | -40°F to +140°F
Housing: Aluminum housing UL94 certified XENOY cover
Dimensions (W x H x L): 300 mm x 300 mm x 60 mm| 11.8 in x 11.8 in x 2.4 in
Weight: 2.3 kg | 5.1 lbs
Protection: Waterproof IP66
Power Supply Voltage: 12–24 VDC supply
Power Consumption: 10 W (max 12 W)
Output Power: EU: 2 W (e.r.p). US: 4 W (e.i.r.p)
Certificates: CE Certificate according to R&TTE-Directive 1999/5/EC and FCC
Standard: RAIN (EPC Gen2 ISO 18000-63)
EMC: EN 301489-1, EN 301489-3
Safety: EN 60950-1, EN 60950-22

PARKING TELECOM PASSIVE WINDSHIELD TAG

An adhesive tag, designed for permanent mounting on car windshield. It is a battery free, UHF read only tag, suitable for long range vehicle access applications, which can be permanently and tamper evidently attached to a vehicle. The tag is mounted on the inside of the vehicle windshield using the adhesive, and has a barcode at the front to allow automated processing and easy issuing to users. The tags are delivered in continuous running number series.

Read Range: EU: Up to 8 m (26 ft). US: Up to 9 m (29 ft)
Operating Frequencies: EU: 865–868 MHz. US: 902–928 MHz
Dimensions: 106.4 mm x 28.6 mm| 4.2 in x 1.1 in. Thickness 0.55 mm | 0.022 in
Weight: 2.2 g | 0.078 oz
Adhesive: Low surface energy, pressure-sensitive adhesive
Chip information: Impinj Monza 4D
Operating & Storage Temperature: From -25°C to +80°C | -13°F to +175°F
Material: Flexible polypropylene
Barcode: 128C
Color: White with print
Standard: RAIN (EPC Gen2 ISO 18000-63)

PARKING TELECOM PASSIVE ISO CARD

A flexible and versatile card, designed for vehicle and personal access control. The ISO Card is a battery free, UHF read only card, suitable for long range applications. The ISO Card is particularly suitable when a single card should be used for different vehicles, or when the card should also be used together with an access control system for people identification. The ISO Card can be read from both sides, and has a printable front and pre-printed identification at the back of the card to allow easy issuing to users. The cards are delivered in continuous running number series.

Read Range: EU: Up to 8 m (26 ft). US: Up to 9 m (29 ft)
Operating Frequencies: EU: 865–868 MHz. US: 902–928 MHz
Dimensions: 86 mm x 54 mm| 3.4 in x 2.1 in. Thickness 0.8 mm | 0.031 in
Weight: 5.2 g | 0.18 oz
Chip information: Monza 4QT
Operating & Storage Temperature: From -40°C to +70°C | -40°F to +158°F
Material: Composite PETF/PVC
Color: White with black print
Standard: RAIN (EPC Gen2 ISO 18000-63)
