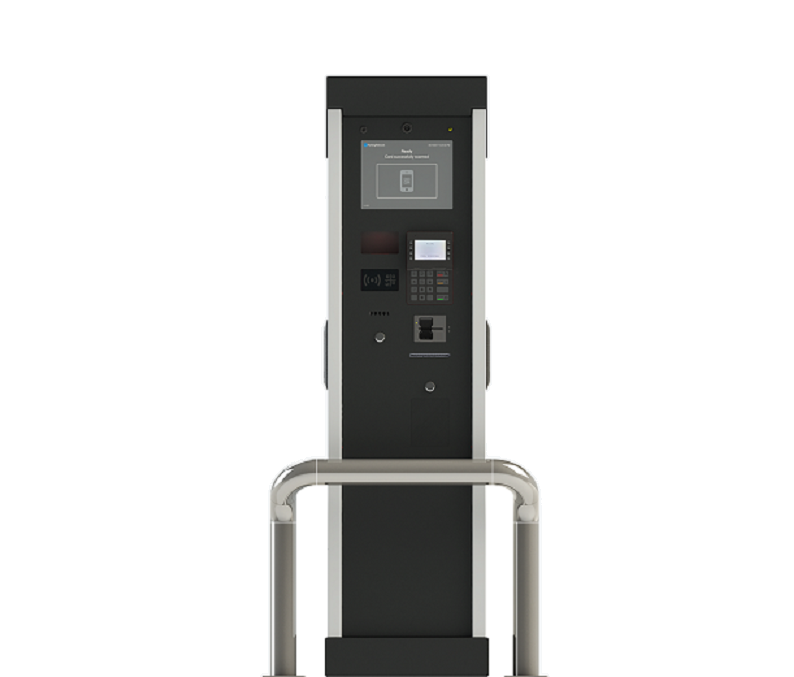

Exit Control Column

The Parking Telecom Cloud Control Column allows for different check-in & check-out options at the Points of Entry and Exit (PoE) – QR Code Ticket, Parking Card, RFID, Mobile Phone (QR Code or/and Bluetooth), ALPR and DSRC.

Unattended payment at the exit as an option (Pay@Exit).

10.4” high brightness color display with state-of-the art energy-saving LED backlight provides excellent information displaying and communication capabilities.

Features

Options

QR Code Scanner

QR Code Scanner with high visibility LED aimer: Laser-free aiming provides an accurate scan indication, creating a customer friendly operating environment while removing the risk of eye injury.
Mobile Phone Reading: Easily scans bar codes directly from mobile device, almost as if they were printed on paper.
Excellent performance on decoding poor or damaged bar codes. Outstanding near-field barcode reading and omnidirectional reading.
Advanced motion tolerance optics. Integrated good-read beeper.

Pay@Exit

Pay@Exit: Unattended Bank Card Terminal provides EMV chip and Contactless (including NFC) card acceptance 24/7 directly at the Exit Control Column as an option. Multi-bank capability enables easy on-boarding to multiple acquirers without the cost of removing and reprogramming hardware.
Receipt Printer
Double Gate at Exit
Ram Protectors
Cloud based VoIP intercom
ADA compliant SIP Intercom

Innovative and ergonomic design
10.4" color display
Illuminated ticket button
Temperature Monitoring and Control

Exit Control Column

The Parking Telecom Cloud Control Column allows for different check-in & check-out options at the Points of Entry and Exit (PoE) – QR Code Ticket, Parking Card, RFID, Mobile Phone (QR Code or/and Bluetooth), ALPR and DSRC.

Unattended payment at the exit as an option (Pay@Exit).

10.4” high brightness color display with state-of-the art energy-saving LED backlight provides excellent information displaying and communication capabilities.

Features

QR Code Scanner

QR Code Scanner with high visibility LED aimer: Laser-free aiming provides an accurate scan indication, creating a customer friendly operating environment while removing the risk of eye injury.
Mobile Phone Reading: Easily scans bar codes directly from mobile device, almost as if they were printed on paper.
Excellent performance on decoding poor or damaged bar codes. Outstanding near-field barcode reading and omnidirectional reading.
Advanced motion tolerance optics. Integrated good-read beeper.

Options

Pay@Exit

Pay@Exit: Unattended Bank Card Terminal provides EMV chip and Contactless (including NFC) card acceptance 24/7 directly at the Exit Control Column as an option. Multi-bank capability enables easy on-boarding to multiple acquirers without the cost of removing and reprogramming hardware.
Receipt Printer
Double Gate at Exit
Ram Protectors
Cloud based VoIP intercom
ADA compliant SIP Intercom

Innovative and ergonomic design
10.4" color display
Illuminated ticket button
Temperature Monitoring and Control

PARKING TELECOM EXIT CONTROL COLUMN

TECHNICAL SPECIFICATION

ELECTRICAL

Supply Voltage
Frequency

100 to 240 V AC
50 - 60Hz

DISPLAY

LCD Technology
Diagonal Size
Active Display Area
Brightness
Native Resolution
Aspect Ratio
Viewing Angle (typical)

Active matrix TFT LCD
10.4"
210.2 mm (H) x 158.4 mm (V)
Sunlight readable, high brightness (2,000 nits). Auto adjustable by Light Sensor
800 x 600
4:3
130° (H), 110° (V)

BARCODE SCANNER

Scan Pattern
Motion Tolerance
Scan Angle
Reading Indicators
Reading Ranges

Area Image (838 x 640 pixel array)
>270 cm/s (106 in/s) at focal point
Horizontal: 42.4°, Vertical: 33°
Beeper, Good Read LED
10 mil: 4.7 cm to 21.6 cm I 1.9 in to 8.5 in

RFID READER

Operating Frequency
Typical Maximum Read Range
Indicators
Power Supply
Interface

Dual 125 kHz and 13.56 MHz
2.5 - 7.6 cm | 1.0” - 3.0” dependent upon proximity card type and environment
Tri-state LED, dual tone beeper
USB Self-powered; PoE
USB, Serial RS-232, Ethernet

ENVIROMENTAL

Ambient Temperature
Storage Temperature
Relative Humidity
Protection Class Column Housing
Housing design
Compliant with
Color

-20°C to +50°C | -4F to +122F
-20°C to +60°C | -4F to +140F
max. 95% non-condensing
IP54
Powder coated aluminum and stainless steel
CE, UL
Signal White RAL 9006 and Black Anthracite RAL 7021

DIMENSIONS

Dimensions (W x D x H)

360 mm x 450 mm x 1380 mm | 14.1 in x 17.7 in x 54.3 in

PARKING TELECOM EXIT CONTROL COLUMN

TECHNICAL SPECIFICATION

ELECTRICAL

Supply Voltage: 100 to 240 V AC
Frequency: 50 - 60Hz

DISPLAY

LCD Technology: Active matrix TFT LCD
Diagonal Size: 10.4"
Active Display Area: 210.2 mm (H) x 158.4 mm (V)
Brightness: Sunlight readable, high brightness (2,000 nits). Auto adjustable by Light Sensor
Native Resolution: 800 x 600
Aspect Ratio: 4:3
Viewing Angle (typical): 130° (H), 110° (V)

BARCODE SCANNER

Scan Pattern: Area Image (838 x 640 pixel array)
Motion Tolerance: >270 cm/s (106 in/s) at focal point
Scan Angle: Horizontal: 42.4°, Vertical: 33°
Reading Indicators: Beeper, Good Read LED
Reading Ranges: 10 mil: 4.7 cm to 21.6 cm I 1.9 in to 8.5 in

RFID READER

Operating Frequency: Dual 125 kHz and 13.56 MHz
Typical Maximum Read Range: 2.5 - 7.6 cm | 1.0” - 3.0” dependent upon proximity card type and environment
Indicators: Tri-state LED, dual tone beeper
Power Supply: USB Self-powered; PoE
Interface: USB, Serial RS-232, Ethernet

ENVIROMENTAL

Ambient Temperature: -20°C to +50°C | -4F to +122F
Storage Temperature: -20°C to +60°C | -4F to +140F
Relative Humidity: max. 95% non-condensing
Protection Class Column Housing: IP54
Housing design: Powder coated aluminum and stainless steel
Compliant with: CE, UL
Color: Signal White RAL 9006 and Black Anthracite RAL 7021

DIMENSIONS

Dimensions (W x D x H): 360 mm x 450 mm x 1380 mm | 14.1 in x 17.7 in x 54.3 in

* Performance may be impacted by bar code quality and environmental conditions
