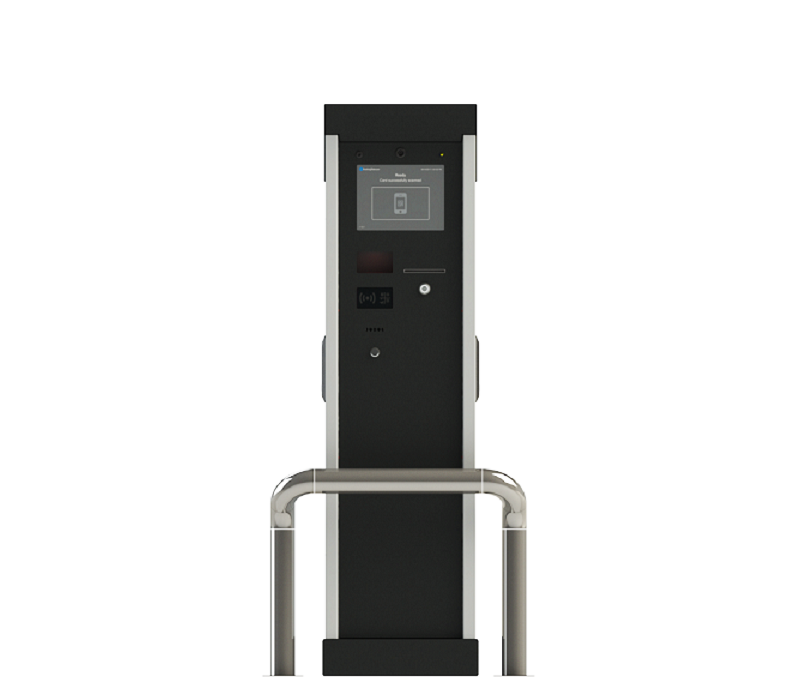

Entry Control Column

The PT Cloud Control Column allows for
different check-in & check-out options at the
Points of Entry and Exit (PoE) – QR Code Ticket,
Parking Card, RFID, Mobile Phone (QR Code
or/and Bluetooth), ALPR and DSRC.
Unattended payment at the exit as an option
(Pay@Exit).
The 10.4” high brightness color, touch display
with state-of-the art energy-saving LED
backlight, provides excellent information
displaying and communication capabilities.

Parking Telecom Entry Control Columns

Features

QR Code Scanner

QR Code Scanner with high visibility LED aimer: laser-free aiming provides an accurate scan indication, creating a customer friendly operating environment while removing the risk of eye injury.
Mobile Phone Reading: easily scans bar codes directly from mobile device, almost as if they were printed on paper.
Excellent performance on decoding poor or damaged bar codes. Outstanding near-field barcode reading and omnidirectional reading.
Advanced motion tolerance optics. Integrated good-read beeper.

Ticket Printer

Ticket Printer with Industry leading print speed of up to 220mm/s and higher reliability at an MCBF of 60 Million Lines.
Large Paper Roll supporting up to a 254 mm | 10” paper roll for many hours of unattended operation.
Innovative looping presenter prevents paper jams by printing the receipt in full before providing it to the user.

Innovative and ergonomic design
10.4" color display
Illuminated ticket button
Temperature monitoring and control

Options

Classification
Vehicle Color Recognition
Vehicle Maker Recognition
Vehicle Model Recognition

PARKING TELECOM ENTRY CONTROL COLUMN

TECHNICAL SPECIFICATION

ELECTRICAL

Supply Voltage
Frequency

100 to 240 V AC
50 - 60Hz

DISPLAY

LCD Technology
Diagonal Size
Active Display Area
Brightness
Native Resolution
Aspect Ratio
Viewing Angle (typical)

Active matrix TFT LCD
10.4"
210.2 mm (H) x 158.4 mm (V)
Sunlight readable, high brightness (2,000 nits). Auto adjustable by Light Sensor
800 x 600
4:3
130° (H), 110° (V)

QR CODE SCANNER

Scan Pattern
Motion Tolerance
Scan Angle
Reading Indicators
Reading Ranges

Area Image (838 x 640 pixel array)
>270 cm/s (106 in/s) at focal point
Horizontal: 42.4°, Vertical: 33°
Beeper, Good Read LED
10 mil: 4.7 cm to 21.6 cm I 1.9 in to 8.5 in

RFID READER

Operating Frequency
Typical Maximum Read Range
Indicators
Power Supply
Interface

Dual 125 kHz and 13.56 MHz
2.5 - 7.6 cm | 1.0” - 3.0” dependent upon proximity card type and environment
Tri-state LED, dual tone beeper
USB Self-powered; PoE
USB, Serial RS-232, Ethernet

TICKET PRINTER

Paper Width
Paper Thickness
Paper Diameter
Print Method
Print Speed
Ticket Presenter
Bezel
Sensors
MCBF
Cutter
Presenter

Adjustable, from 45 mm to 82.5 mm | 1.77 in to 3.25 in
0.06 mm to 0.15 mm
max 254 mm | 10 in
Direct Thermal
Up to 220 mm/sec | 8.66 in/sec
Loop presenter
Flashing LED Bezel
Near End Paper Sensor
60 million lines
1 million cuts
1 million receipts

ENVIROMENTAL

Ambient Temperature
Storage Temperature
Relative Humidity
Protection Class Column Housing
Housing design
Compliant with
Color

-20°C to +50°C | -4F to +122F
-20°C to +60°C | -4F to +140F
max. 95% non-condensing
IP54
Powder coated aluminum and stainless steel
CE, UL
Signal White RAL 9006 and Black Anthracite RAL 7021

DIMENSIONS

Dimensions (W x D x H)

360 mm x 450 mm x 1380 mm | 14.1 in x 17.7 in x 54.3 in

PARKING TELECOM ENTRY CONTROL COLUMN

TECHNICAL SPECIFICATION

ELECTRICAL

Supply Voltage: 100 to 240 V AC
Frequency: 50 - 60Hz

DISPLAY

LCD Technology: Active matrix TFT LCD
Diagonal Size: 10.4"
Active Display Area: 210.2 mm (H) x 158.4 mm (V)
Brightness: Sunlight readable, high brightness (2,000 nits). Auto adjustable by Light Sensor
Native Resolution: 800 x 600
Aspect Ratio: 4:3
Viewing Angle (typical): 130° (H), 110° (V)

QR CODE SCANNER

Scan Pattern: Area Image (838 x 640 pixel array)
Motion Tolerance: >270 cm/s (106 in/s) at focal point
Scan Angle: Horizontal: 42.4°, Vertical: 33°
Reading Indicators: Beeper, Good Read LED
Reading Ranges: 10 mil: 4.7 cm to 21.6 cm I 1.9 in to 8.5 in

RFID READER

Operating Frequency: Dual 125 kHz and 13.56 MHz
Typical Maximum Read Range: 2.5 - 7.6 cm | 1.0” - 3.0” dependent upon proximity card type and environment: Tri-state LED, dual tone beeper
Indicators: USB Self-powered; PoE
Power Supply: USB, Serial RS-232, Ethernet
Interface

TICKET PRINTER

Paper Width: Adjustable, from 45 mm to 82.5 mm | 1.77 in to 3.25 in
Paper Thickness: 0.06 mm to 0.15 mm
Paper Diameter: max 254 mm | 10 in
Print Method: Direct Thermal
Print Speed: Up to 220 mm/sec | 8.66 in/sec
Ticket Presenter: Loop presenter
Bezel: Flashing LED Bezel
Sensors: Near End Paper Sensor
MCBF: 60 million lines
Cutter: 1 million cuts
Presenter: 1 million receipts

ENVIROMENTAL

Ambient Temperature: -20°C to +50°C | -4F to +122F
Storage Temperature: -20°C to +60°C | -4F to +140F
Relative Humidity: max. 95% non-condensing
Protection Class Column Housing: IP54
Housing design: Powder coated aluminum and stainless steel
Compliant with: CE, UL
Color: Signal White RAL 9006 and Black Anthracite RAL 7021

DIMENSIONS

Dimensions (W x D x H): 360 mm x 450 mm x 1380 mm | 14.1 in x 17.7 in x 54.3 in

* Performance may be impacted by bar code quality and environmental conditions
