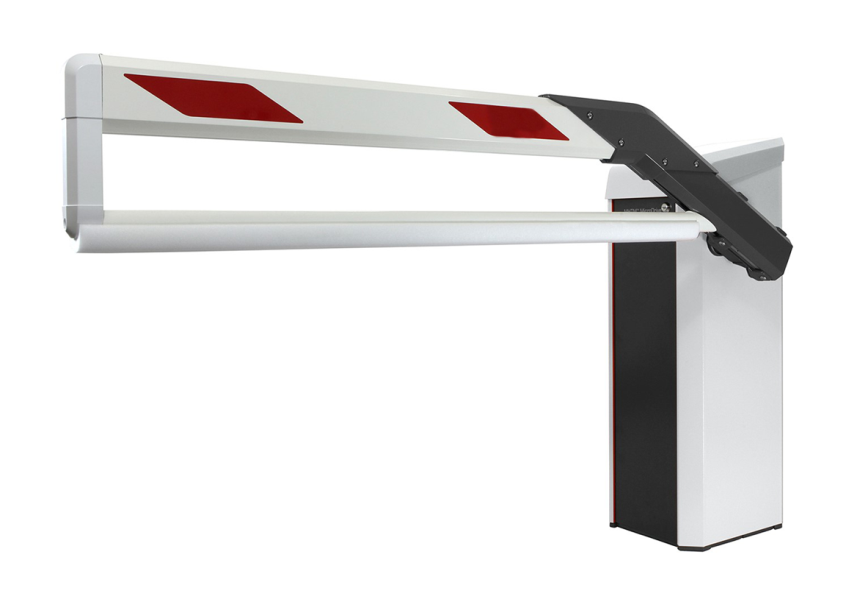

Barrier Gate Pro

The Parking Telecom Barrier Gate Pro is designed for high volume parking applications 10 million opening and closing cycles
Opening and closing times of as little as 1.3 sec
Low power consumption
High functionality
High operating convenience
Safety control unit according to EN 13849

Features

Options

Modular, attractive design
Strong construction
Aluminum housing and corrosion protection
Innovative drive technology
PT Barrier Gate controller
Integrated 2-channel loop detector
Break away flange
Maintenance free

Articulated Boom
Information Boom
Light gate
Remote control
Two Control Columns control
Double gate at EXIT

Barrier Gate Pro

The Parking Telecom Barrier Gate Pro is designed for high volume parking applications 10 million opening and closing cycles
Opening and closing times of as little as 1.3 sec
Low power consumption
High functionality
High operating convenience
Safety control unit according to EN 13849

Features

Modular, attractive design
Strong construction
Aluminum housing and corrosion protection
Innovative drive technology
PT Barrier Gate controller
Integrated 2-channel loop detector
Break away flange
Maintenance free

Options

Articulated Boom
Information Boom
Light gate
Remote control
Two Control Columns control
Double gate at EXIT

PARKING TELECOM BARRIER GATE PRO

TECHNICAL SPECIFICATION

ELECTRICAL

Supply Voltage
Frequency
Nominal Current Consumption*
Max Current Consumption*
Nominal Power Consumption*
Duty Circle

85 to 264 V AC
50-60Hz
1.5 A
5.0 A
95 W
100 %

OPERATING CONDITIONS

Ambient Temperature
Storage Temperature
Relative Humidity
Wind Force
Protection Class Barrier Housing

-30°C to +55°C | -22F to +131F
-30°C to +70°C | -22F to +158F
max. 95% non-condensing
Max. 10 Bft (Beaufort)
IP54

OPERATING TIMES

Opening - closing time

1.3 s

GENERAL

Housing design
Base frame
Compliant with
Color

Aluminum
Stainless steel
2004/108/EC, 2006/42/EC, 305/2011, CE, UL 325
Signal White Aluminum RAL 9003 and Black Anthracite RAL 7021

*The values refer to power supply of 120 V AC and 230 V AC without accessories.

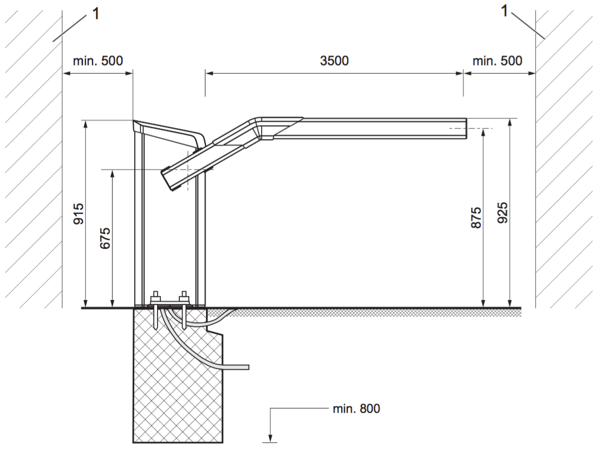

DIMENSIONS AND WEIGHT

Locking Width
Dimensions
Barrier Housing Weight

3.66 m | 12 ft
315 mm x 360 mm x 915 mm | 12.4 in x 14.2 in x36.0 in
40 kg | 88.2 lbs

PARKING TELECOM BARRIER GATE PRO

TECHNICAL SPECIFICATION

ELECTRICAL

Supply Voltage: 85 to 264 V AC
Frequency: 50-60Hz
Nominal Current Consumption* 1.5 A
Max Current Consumption* 5.0 A
Nominal Power Consumption* 95 W
Duty Circle: 100 %

OPERATING CONDITIONS

Ambient Temperature: -30°C to +55°C | -22F to +131F
Storage Temperature: -30°C to +70°C | -22F to +158F
Relative Humidity: max. 95% non-condensing
Wind Force: Max. 10 Bft (Beaufort)
Protection Class Barrier Housing: IP54

OPERATING TIMES

Opening - closing time: 1.3 s

GENERAL

Housing design: Aluminum
Base frame: Stainless steel
Compliant with: 2004/108/EC, 2006/42/EC, 305/2011, CE, UL 325
Color: Signal White Aluminum RAL 9003 and Black Anthracite RAL 7021

*The values refer to power supply of 120 V AC and 230 V AC without accessories.

DIMENSIONS AND WEIGHT

Locking Width: 3.66 m | 12 ft

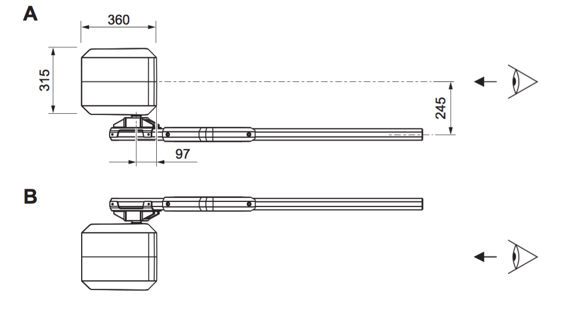

Dimensions: 315 mm x 360 mm x 915 mm | 12.4 in x 14.2 in x36.0 in
Barrier Housing Weight: 40 kg | 88.2 lbs
