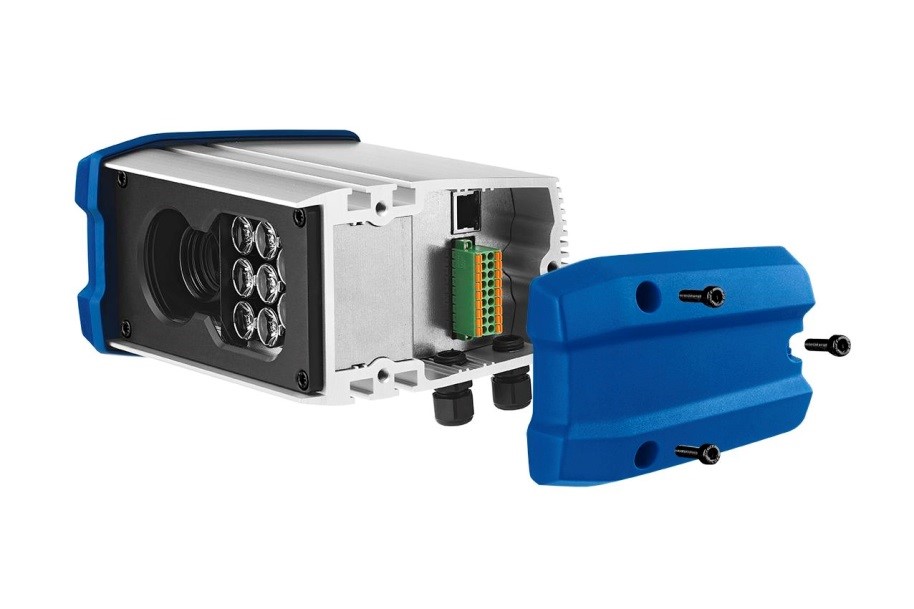

ALPR camera

The PT ALPR camera is an embedded solution, with onboard OCR, that offers maximum detection performance. Its highly integrated architecture guarantees a system of automated monitoring and management.

Thanks to the local buffering of the information, the system is able to work even in the case where the data connection is lost. Saved information will be automatically sent to the Cloud as soon as the data connection is re-established.

Parking Telecom’s fully integrated solution allows for ticketless operation as well as time and number of entries accumulation per period of time.

Parking Telecom ALPR

Features

Options

New generation full HD sensor for reading reflective and non-reflective license plates
Onboard OCR
Extra compact size to reduce the installation impact
Maximum speed 70 km/h | 43 mph
Waterproof IP67 housing incl. bracket
Number plates list management on board
Maximum number of entries per period
Maximum stay duration per period

Classification
Vehicle Color Recognition
Vehicle Maker Recognition
Vehicle Model Recognition

ALPR camera

The Parking Telecom ALPR camera is an embedded solution that offers maximum detection performance. Its highly integrated architecture guarantees a system of automated monitoring and management.

Thanks to the local buffering of the information, the system is able to work even in the case where the data connection is lost. Saved information will be automatically sent to the Cloud as soon as the data connection is re-established.

Parking Telecom’s fully integrated solution allows for ticketless operation as well as time and number of entries accumulation per period of time.

Parking Telecom ALPR

Features

New generation full HD sensor for reading reflective and non-reflective license plates
Extra compact size to reduce the installation impact
Maximum speed 70 km/h | 43 mph
Range of action: 3 to 8 m | 10 to 26 ft
Detection: 99%
Reading: >95%
Waterproof IP67 housing incl. bracket
Number plates list management on board
Maximum number of entries per period
Maximum stay duration per period

Options

Classification
Vehicle Color Recognition
Vehicle Maker Recognition
Vehicle Model Recognition

PARKING TELECOM ALPR CAMERA

TECHNICAL SPECIFICATION

LICENCE PLATE RECOGNITION

OCR
Grabbing
Web Server
TCP/IP Server
Date and Hour
Software Update

ALPR engine on board
Up to 60 fps
Installation and configuration by Web Server on board
Configuration and monitoring through TCP/IP protocol
Synchronization via SNTP protocol
Upgrading via Web Interface

DATA TRANSMISSION

FTP
TCP/IP
Compression

FTP Client to FTP Server mode for remote data transmission; 2 IP address
TCP/IP open protocol; two IP address management
JPG

OPERATING MODE

Triggered

Image capture and processing triggered by Ethernet command or digital signal

SYSTEM

ALPR camera
Illuminator
Lenses
Operating System
Storage
Digital i/o
Connectors
Ethernet

2 MPx BW | 2 MPx Color (Color Version)
8 high power LEDs, InfraRed @ 850 nm
CS-Mount. Different focal lengths available
Linux OS
uSD up to 128 Gb
2 Optoisolated input - 2 Relay Outputs – 1 Strobe Output
Vandal and Waterproof connector
Fast Ethernet 10/100/1000

ENVIRONMENT, SIZE, POWER

Operating & Storage Temperature
Operating & Storage Humidity

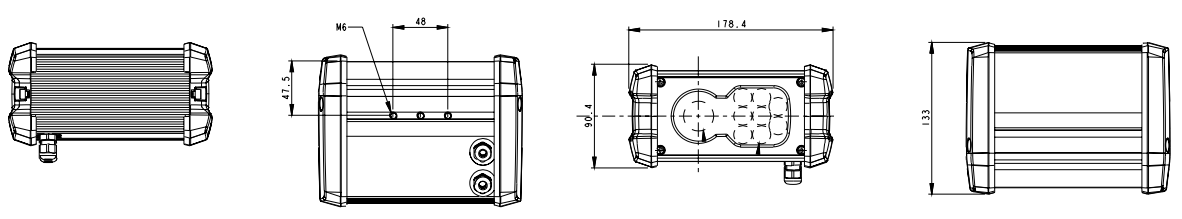

Dimensions (W x H x L)
Weight
Protection
Power supply voltage
Power consumption

From -40°C to +55°C | -40 F to 131 F
From 10% to 90% non-condensing
178 x 90 x 133 mm| 7.00 in x 3.54 in x 5.23 in
1.5 kg | 3.3 lbs
Waterproof IP67
24 V DC, PoE
13 W max

PARKING TELECOM ALPR CAMERA

TECHNICAL SPECIFICATION

LICENCE PLATE RECOGNITION

OCR: ALPR engine on board
Grabbing: Up to 60 fps
Web Server: Installation and configuration by Web Server on board
TCP/IP Server: Configuration and monitoring through TCP/IP protocol
Date and Hour: Synchronization via SNTP protocol
Software Update: Upgrading via Web Interface

DATA TRANSMISSION

FTP: FTP Client to FTP Server mode for remote data transmission; 2 IP address
TCP/IP: TCP/IP open protocol; two IP address management
Compression: JPG

OPERATING MODE

Triggered: Image capture and processing triggered by Ethernet command or digital signal

SYSTEM

ALPR camera: 2 MPx BW | 2 MPx Color (Color Version)
Illuminator: 8 high power LEDs, InfraRed @ 850 nm
Lenses: CS-Mount. Different focal lengths available
Operating System: Linux OS
Storage: USD up to 128 Gb
Digital i/o: 2 Optoisolated input - 2 Relay Outputs – 1 Strobe Output
Connectors: Vandal and Waterproof connector
Ethernet: Fast Ethernet 10/100/1000

ENVIRONMENT, SIZE, POWER

Operating & Storage Temperature: From -40°C to +55°C | -40 F to 131 F
Operating & Storage Humidity: From 10% to 90% non-condensing
Dimensions (W x H x L): 178 x 90 x 133 mm| 7.00 in x 3.54 in x 5.23 in
Weight: 1.5 kg | 3.3 lbs
Protection: Waterproof IP67
Power supply voltage: 24 V DC, PoE
Power consumption: 13 W max
